Deployment Frames

Compact Frames

  • Protection for profiling
  • Eases mounting to other frames or equipment
  • Sizes available for all HOBI Instruments
  • Disassembles for compact shipment
  • Easy assembly

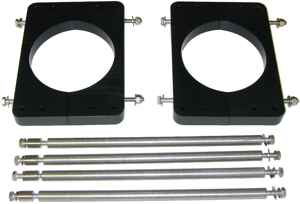

Cage Parts

Assembled Cagec-Beta in collapsible cage
Instrument Width Clamp Depth Clamp Bolt Length Rod Length Total Height
HydroScat-2 8" (20.3 cm)  6" (15.2 cm) 6.5" (16.5 cm)  7.5" (19 cm) 9.8" (25 cm)
HydroScat-4 8" (20.3 cm)  6" (15.2 cm) 6.5" (17.8 cm) 9.8" (25 cm)  12.1" (30.6 cm)

HydroRad-1 & 2

 8" (20.3 cm) 7" (17.8 cm) 8" (20.3 cm)  9.8" (25 cm)  12.1" (30.6 cm)

HydroRad-3 & 4

 8" (20.3 cm) 7" (17.8 cm) 8" (20.3 cm)  15.8" (40 cm)  18" (45.7 cm)


 Welded

  • Ultimate protection for multiple devices
  • Corrosion-resistant 316 stainless steel
  • Custom configurations available



a-Sphere system in welded cage
Copyright © 1998-2012 by Hydro-Optics, Biology, & Instrumentation Laboratories All rights reserved.
All specifications subject to change without notice.
